钢纤维
Fibersteel
|
|
|

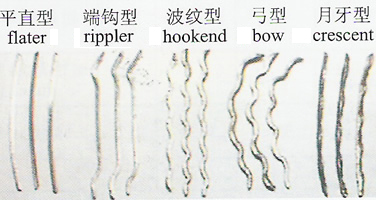

规格 specification |
型号model |
平直型flater
SL-1 |
波纹型rippler
BW-30 |
端钩型hookend
DG-30 |
弓型bow
G-30 |
材料material |
冷轧带钢、冷拉钢丝 |
长度公称尺寸long size(MM) |
28-33,-,50 |
20,25,30,-,50 |
20,25,30,-,50 |
20,25,30,-,50 |
宽度width(MM) |
0.5-1.2 |
0.3-1.5 |
0.3-1.2 |
0.3-1.5 |
厚度thickness(mm) |
0.5-1.2 |
0.3-0.80 |
0.3-1.0 |
0.3-0.8 |
等效直径equivalent diameter(mm) |
0.5-0.8 |
0.3-0.85 |
0.3-0.75 |
0.3-0.75 |
长/径经(Long/Diameter) |
50-70 |
50-70 |
50-70 |
50-70 |
抗拉强度tensile strength(Mpa) |
|
月牙型、铣削型等型号可按用户的技术要求生产或供货
To be produced according the technical of customer,for example model crescent,milling,… |
|
|
|
